Monitor Regia Smallhd 1703 hdr

Città: Napoli

Quantità disponibili: 1

Monitor Regia Smallhd 1703 hdr

Città: Napoli

Quantità disponibili: 1

Noleggio giornaliero: 80,00 +IVA

*Costo al netto di assicurazione e servizi di gestione (visibili nella lista completa)

Incluso nel Noleggio

Monitor smallhd 1703 hdr, adattatore per batteria v-lock.

Descrizione

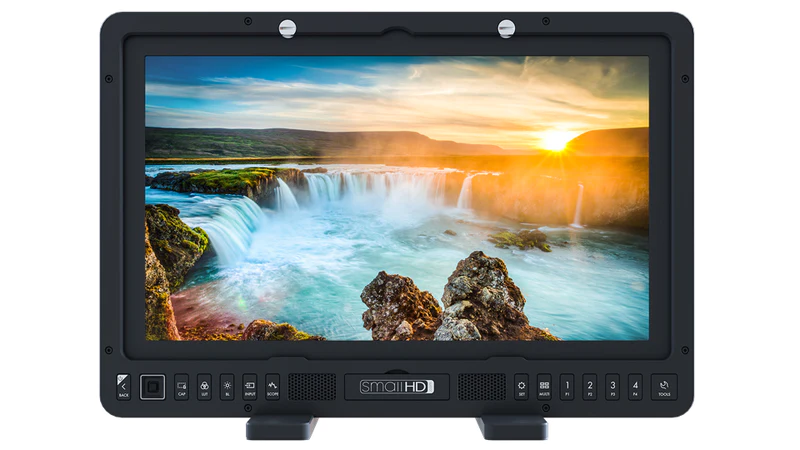

Monitor Regia Smallhd 1703 hdr

Panel Type

IPS LCD

Diagonal Size

17

Resolution

1920×1080

Pixel Density

133 ppi

Aspect Ratio

16:9

Active Area

16.52

Max Brightness

900nits

Contrast

1400:1

Gamut

100% DCI-P3

Color Depth

8+2 Bit

Viewing Angle

178 degrees Vertical and Horizontal

Backlight Type

White LED

Adjustable Backlight

Yes – 0 – 100 in 6 steps with 100-nit studio mode

Adaptive Color (YN)

No

Input Signal

3G-SDI Input Types

YCC 4:2:2 @ 10bit: 1920x1080p60, 1920x1080p59.94, 1920x1080p50, 1080i60, 1080i59.94, 1080i50

HD-SDI Input Types

YCC 4:2:2 @ 10bit: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080psF25, 1080psF24, 1080psF23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

SD-SDI Input Types

YCC 4:2:2 @ 10bit: 480i29.97, 576i25

HDMI Input Types

Supports YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50

Component Input Types

Not Supported

Composite Input Types

Not Supported

Audio Input Types

HDMI & SDI – Monitor through Speakers in Front Bezel or Through Headphone Jack – Metering up to 8 channels

Output Signal

3G-SDI Output Types

YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50

HD-SDI Output Types

YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

SD-SDI Output Types

YCC 4:2:2 @ 10-bits: 480i29.97, 576i25

HDMI Output Types

YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25

Component Output Types

Not Supported

Composite Output Types

Not Supported

Audio Output Types

HDMI & SDI – Incoming Audio Stream is sent downstream via HDMI or SDI connection

Connector Type

SDI

2x 3G Inputs (BNC), 2x 3G Outputs (BNC)

HDMI

1x Input, 1x Output

Component

Not Supported

Composite

Not Supported

Audio

1x ⅛” Headphone Jack on Front of Monitor

Power In

1x AC Power Input – 3 Prong 90-260V, 1x XLR 4-pin Input 12-34VDC, 1x Lemo Output 12VDC @ 4A Max

Power Out

1x Lemo Output 12VDC @ 4A Max

USB

1x Front USB2, 2x Rear USB2

Controls

Primary

Joystick Navigation, Dedicated Back Button. Additional Dedicated buttons for: LUT Selection; Backlight Level; Input Switch; Settings Menu; Multi View; Page 1-4 Instant Selection; Tools Menu

Record Capture

Dedicated Capture Button on Front Bezel

Data I/O

Storage Media

SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades, Profile Saving

USB

USB ports support storage devices for LUTs, Captured Images, Image Overlays, Profile Saving.

Power

Connector

Single XLR 4-pin 12-34V DC IN for Battery or Power Supply, 12V Lemo 2-pin OUT MAX 2A

Voltage

DC: 12 – 34 VDC

Consumption

Max draw (100% BL) is 48.9W, Min draw (0 % BL) is 17.7W

Power Supply

Included

Battery Types

Gold-Mount, V-Mount with optional Battery Plate Accessory

Overload Protection

Yes

Output Voltage

12V @ 2A via 2-pin Locking LEMO Connector

Battery Charging Time

Battery Charging Not Supported

Software

Pixel Zoom

2x & 4x Zoom with smooth pan via joystick

Frame Guides

Yes: Preset Aspect Ratios & Customizable

DSLR Scale

Canon 5DMkii & Canon 7D

Custom Scale

Yes: Image Crop & Scale Tool for Overscan; Image Size & Position for Underscan

Anamorphic De-Squeeze

Yes: 1.33x, 1.5x, 1.66x, 2.0x

Image Rotate

Yes – Automatic or Manual Control

Image Flip

Yes – Automatic or Manual Control

Cross Conversion

Yes: HDMI → SDI & SDI → HDMI

Focus Assist

Yes – User Adjustable Color Style and Intensity

Peaking

Yes – User Adjustable Intensity

False Color

Yes – Rainbow & Arri Style

Zebra

Yes – Dual – User Configurable

Waveform

Yes – Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting

Vectorscope

Yes

RGB Parade

Yes – Fully User Customizable

Histogram

Yes – Luma & RGB Style

Image Capture

Yes – With Dedicated Button

Custom LUTS

Yes – Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu

LUT Downstream

Yes – Available on SDI 1 or HDMI Out. Applied on Output Preview Page.

LUT Import

via SD Card or USB Storage Device

Overlay

Yes with Opacity Slider and Blink Setting.

Informazioni aggiuntive

Peso 4000 kg
