Descrizione

TVU ONE TM 1100

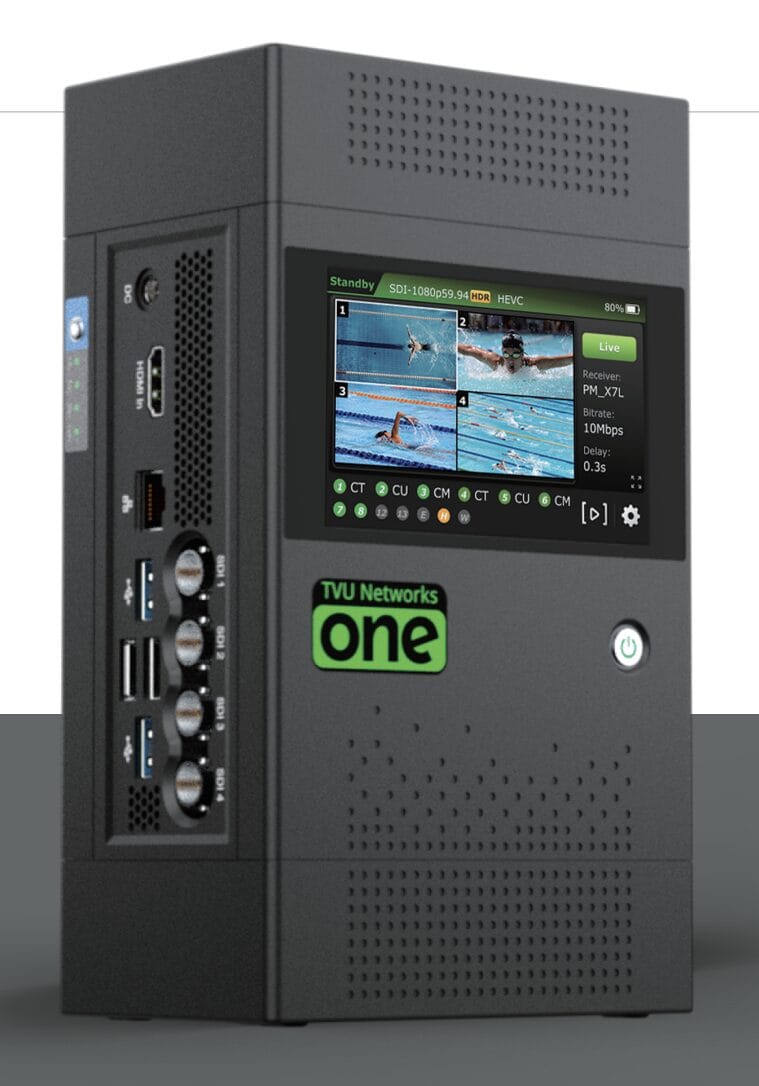

Il dispositivo TVU RPS One (modello TM1100) è un encoder/trasmettitore video mobile ultra-compatto progettato da TVU Networks per le trasmissioni in diretta broadcast e le produzioni in remoto (REMI).

Video Inputs: Up to 4

Audio Inputs: Up to 8 channels embedded SDI, 8 channels embedded HDMI

Supported Data Connections: Simultaneously aggregates up to 12 data connections including internal/external cellular, WiFi, Ethernet, IP Microwave, Satellite (Starlink/Ka/Ku/BGAN). System includes up to 6 embedded 5G modems (w/ LTE/3G fallback), embedded 2.4/5GHz WiFi, Ethernet, and 4 USB connections for external modem connections

Modem Support: 6 embedded 3GPP Release 16 5G/LTE/3G

Encoding and Compression Standard: H.264 or H.265/HEVC

Bit Rate: 100K-125Mbps

Transmission Protocol: Inverse Statmux X

Recording: Supported, Dual Encoder

Video Resolutions:
UHD 2160p
23.98/24/25/29.97/30/47.94/48/50/59.94/60
HD 1080p
23.98/24/25/29.97/30/47.94/48/50/59.94/60
HD 1080psf23.98/24/25/29.97/30
HD 1080i 50/59.94/60
HD 720p 50/59.94/60
SD PAL 625i/50
SD NTSC 525i/59.9
